STAND - Multi-Position Stand : AmeriVacS

Parts

STAND - Multi-Position Stand

$985 USD

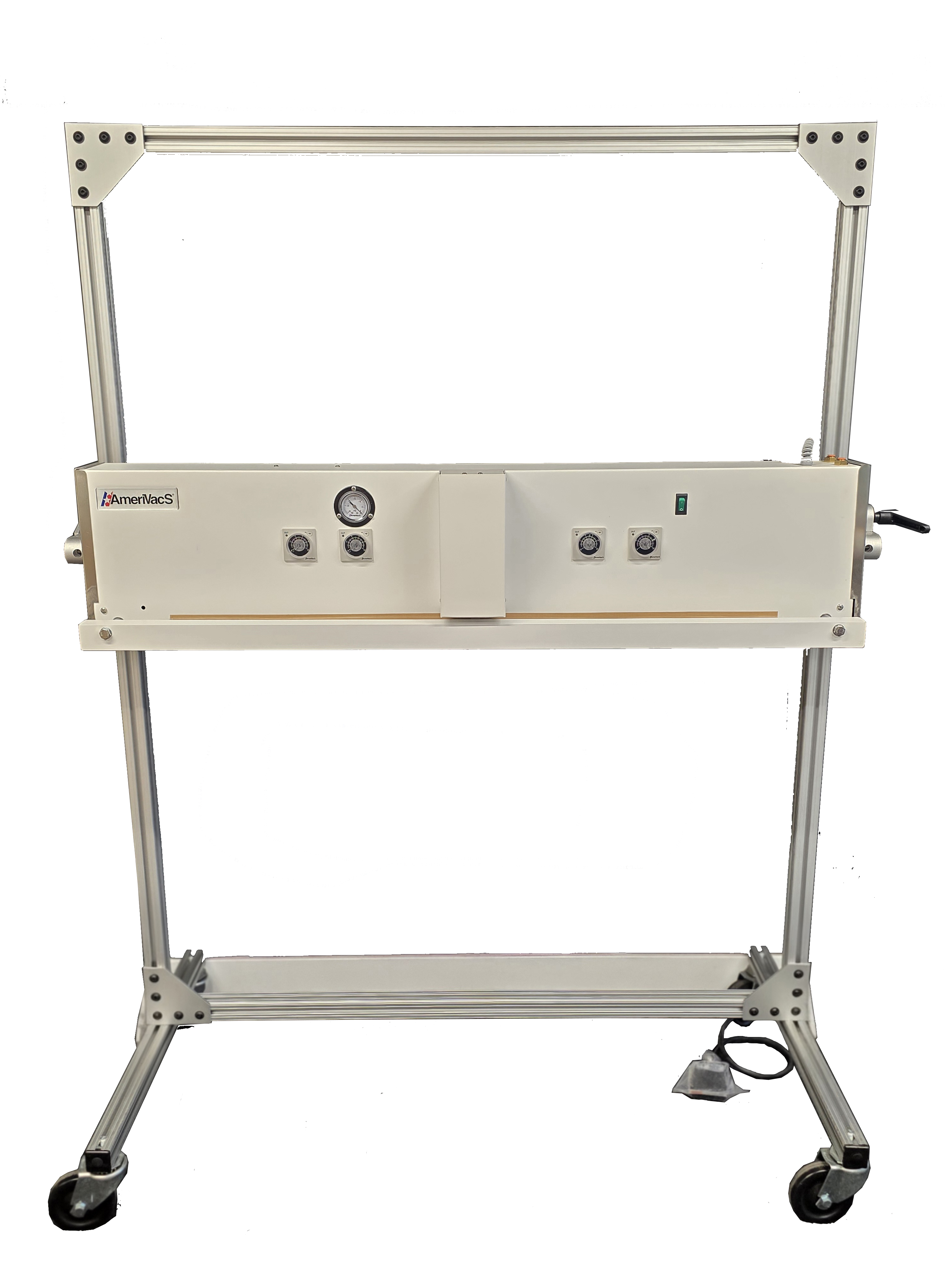

Made of anodized aluminum, this user-friendly multi-position machine stand is for the AVS vacuum sealer and the AVP and AVN series up to 35” long. Its light and sturdy frame allows for different height adjustments and machine angles to maximize productivity.

STAND - Multi-Position Stand

  • Size:
  • Upgrades:
  • Accessories:

STAND - Multi-Position Stand

  • Size:
  • Upgrades:
  • Accessories:

Loading...
Checkout
  • Product Information

    Made of anodized aluminum, this user-friendly multi-position machine stand is for the AVS and AVN series vacuum sealers up to 35” long. Light and sturdy frame allows for different height adjustments and machine angles to maximize productivity.

    Always In-Stock and Ready to Ship. A 15% Restocking Fee WILL be applied to ALL part returns. We only ship via Fed-Ex. A handling charge will apply to all orders: $15 Handling fee per stand. All AmeriVacS Vacuum Sealers and Parts are FOB our factory in San Diego, CA. Prices are subject to change without notice. All prices shown in US Dollars.

  • Technical Specifications

    AVN AVS CAVS / CAVN AVC / AVCG AVP

    Chamber Size (in)

    N/A

    N/A

    N/A

    22x22x4

    N/A

    Seal Length (in)

    20, 25, 30, 35, 50

    20

    20, 30

    20

    20, 25, 30, 35, 50

    Seal width (in)

    1/4

    1/4

    1/4

    1/4

    1/4

    Vacuum Flow (CFM)

    6

    6

    3

    18

    N/A

    Max Vacuum Pressure (inHg)

    27

    27

    27v

    28.5

    N/A

    Air Requirements (CFM)

    6

    6

    N/A

    18

    1

    Amps @120 Volts A.C.*

    8, 9, 13, 15, 15

    8

    10, 15

    8

    8, 9, 13, 15, 15

    Unit Size (in)*

    28, 33, 40, 45, 60) L x 10W x 7H

    28L x 10W X 7H

    28L x 10W X 7H

    29L X 24W X 12H

    (28, 33, 40, 45, 60) L x 10W x 7H

    Unit Weight (lbs)*

    35, 41, 55, 62, 100

    34

    57, 75

    92

    35, 41, 55, 62, 100

    Max Temperature**

    500F

    500F

    500F

    500F

    500F

    Ship Weight (lbs)*

    40, 47, 62, 72, 111

    39

    65, 85

    108

    34, 41, 56, 69, 89

    Ship Dims (in)*

    (37, 41, 47, 53, 67) L x 18W X 16H

    37L X 18W X 16H

    (35, 47)L x 18W X 20H

    35 x 31 x 17

    (37, 41, 47, 53, 67) L x 18W X 16H

    Values may vary. Accesories and Upgrades will change values.

    * By Seal length respectively

    ** Can be higher

    Values may vary. Accesories and Upgrades will change values.

    * By Seal length respectively

    ** Can be higher

  • Warranty & 1 Week Trial Info

    2-Year Limited Warranty.

    All AmeriVacS Sealers are warranted for two (2) full years from date of delivery against electrical and mechanical defects, excluding normal wear items such as Heating Elements, Element Posts, Teflon, Pressure Bar Pads, Gray/Black Rubbers and Seal Gaskets.

    The warranty is voided if the machine is damaged due to improper, negligent use and/or unauthorized repairs. Further, this limited warranty does not cover any Acts of God such as fire, hurricanes, flood and tornadoes. Any defective machine under warranty that is returned freight prepaid will, at our option, be repaired or replaced by AmeriVacS, at no charge.

    1-Week Trial does not apply to spare parts.
